How to Choose Solar Circuit Breakers for Safety

Share this post
Row of electrical circuit breakers installed in a switchboard panel for electrical safety and protection

A solar circuit breaker protects electrical wiring and equipment when excessive current flows because of an overload or fault. However, choosing the correct breaker involves more than matching an amperage number to the solar system size.

Solar installations can contain both AC and DC circuits. Therefore, installers need to consider the circuit type, design current, cable capacity, operating voltage, prospective fault current and the equipment manufacturer’s requirements.

In Australia, AS/NZS 3000:2018, known as the Wiring Rules, covers the design, construction and verification of electrical installations. Standards Australia published the standard on 26 June 2018, with Amendment 3 published on 19 May 2023.

PV array wiring and protection are also covered by AS/NZS 5033:2021, published on 19 November 2021. The standard includes DC array wiring, electrical protection devices and switching requirements.

What Does a Solar Circuit Breaker Do?

A solar circuit breaker automatically opens a circuit when electrical conditions exceed its designed protection limits.

Depending on the breaker and application, it can protect against:

  • Overcurrent
  • Short circuits
  • Excessive cable heating
  • Damage to connected equipment
  • Fault conditions within a distribution circuit

However, a circuit breaker does not provide every type of electrical protection.

Circuit Breaker vs Safety Switch

Circuit breakers and safety switches perform different jobs.

A circuit breaker primarily protects wiring from excessive current. In contrast, a safety switch or RCD detects current leakage and helps protect people from electric shock.

Queensland’s Electrical Safety Office specifically warns that the two devices should not be confused.

Some devices, known as RCBOs, combine overcurrent and residual-current protection within one unit.

Circuit Breaker vs Isolator

An isolator provides a means of disconnecting equipment or a circuit for safety or maintenance.

A circuit breaker, meanwhile, provides automatic fault protection when designed for that purpose.

Although some devices may also have isolation capability, an installer should not assume that every breaker and isolator can replace each other.

Solar Rains supplies separate solar isolation products for projects that require dedicated AC or DC isolation.

View Solar Rains isolators

AC vs DC Solar Circuit Breaker

One of the most important decisions is whether the breaker will operate on an AC circuit or DC circuit.

AC Circuit Breakers

AC breakers may be used on circuits such as:

  • Inverter AC outputs
  • Residential distribution circuits
  • Commercial switchboards
  • Other alternating-current loads

The current AS/NZS 60898.1:2024, published on 7 June 2024, applies to AC air-break circuit breakers for household and similar installations up to 125A and specified short-circuit capacities.

Solar Rains supplies CHINT AC miniature circuit breakers in several current ratings and pole configurations.

View the CHINT AC MCB range at Solar Rains

DC Circuit Breakers

DC circuits behave differently during interruption because the current does not naturally pass through zero in the same way as AC.

Therefore, installers must use a breaker specifically rated for the required DC voltage and application.

AS/NZS IEC 60947.2:2015, published on 29 June 2015, applies to circuit breakers with rated voltages up to 1,000V AC or 1,500V DC.

A standard AC MCB should not automatically be used on a high-voltage PV DC circuit unless the manufacturer specifically rates that device for the application.

How to Choose a Solar Circuit Breaker

Choosing a solar circuit breaker requires several electrical parameters to work together.

1. Start With the Design Current

The breaker needs to suit the calculated current of the circuit.

However, the breaker rating cannot be selected independently of the cable.

The protective device, conductor current-carrying capacity and expected load must be coordinated so the breaker protects the cable before the conductor experiences damaging overcurrent.

Therefore, avoid rules such as:

“Always use a 20A breaker with 2.5mm² cable.”

Cable capacity can change according to:

  • Installation method
  • Ambient temperature
  • Cable grouping
  • Conductor type
  • Insulation rating
  • Route and enclosure
  • Applicable derating factors

For solar DC wiring, cable sizing should also account for the PV circuit design and AS/NZS 5033 requirements.

Solar Rains has a separate guide explaining how conductor size changes between 4mm² and 6mm² solar cable.

Read the Solar Rains 4mm vs 6mm cable guide

2. Check the Voltage Rating

The breaker must have a voltage rating suitable for the circuit.

For example, a low-voltage AC breaker cannot simply be installed on a high-voltage PV string because its current rating appears suitable.

For DC applications, check:

  • Maximum circuit voltage
  • Breaker DC voltage rating
  • Number of poles required by the manufacturer
  • Correct connection arrangement
  • Polarity requirements where applicable

Most importantly, follow the breaker manufacturer’s wiring diagram.

3. Check Breaking Capacity

A breaker must be capable of safely interrupting the prospective fault current at its installation point.

This is known as breaking capacity or short-circuit interruption capacity.

A breaker rated below the available fault current may not safely clear a severe fault.

Therefore, designers need to understand both:

  • Normal operating current
  • Maximum prospective fault current

AS/NZS 3000 includes requirements for protection against overcurrent and short-circuit conditions, while the applicable breaker product standard defines the device’s tested performance.

4. Select the Correct Number of Poles

Pole configuration depends on the electrical system and the isolation/protection requirements.

Common breaker formats include:

  • 1-pole
  • 1P+N
  • 2-pole
  • 3-pole
  • 3P+N
  • 4-pole

The correct option depends on the circuit and equipment design.

Therefore, avoid simple rules such as “single pole for all 240V circuits” or “double pole for all solar circuits”.

A licensed electrical professional should determine which conductors require switching and protection.

5. Consider the Trip Characteristic

Some AC MCBs are available with different trip curves such as B, C or D.

These curves affect how the breaker responds to short-duration inrush current.

For example, equipment with higher startup current may require a different trip characteristic from a purely resistive load.

However, trip curves should be selected according to the load and protection coordination rather than used as a generic solar rule.

6. Check Temperature and Installation Conditions

Breaker performance can also depend on the surrounding environment.

Consider:

  • Ambient temperature
  • Enclosure temperature
  • Ventilation
  • Grouping with other protective devices
  • Indoor or outdoor location
  • IP rating of the enclosure
  • Manufacturer derating instructions

A breaker fitted inside a hot outdoor solar enclosure may operate under very different conditions from the same device installed in a ventilated indoor board.

MCB vs MCCB for Solar Systems

Both MCBs and MCCBs can provide overcurrent protection, but they serve different ranges of applications.

MCB

A miniature circuit breaker is compact and commonly used in residential and smaller distribution applications.

Current AC MCB standards such as AS/NZS 60898.1:2024 cover household and similar AC circuit breakers up to defined current, voltage and breaking-capacity limits.

MCBs can be useful where the required:

  • Current rating
  • Voltage rating
  • Breaking capacity
  • Trip characteristic

all fall within the selected device’s specification.

MCCB

A moulded case circuit breaker is generally used when the application requires higher current ratings, greater fault interruption capability or other characteristics not provided by a typical miniature breaker.

However, an MCCB is not automatically required simply because a solar system exceeds a certain kW or current threshold.

The correct device depends on the complete electrical design.

Solar Rains supplies a ZJ Beny BDM Series DC MCCB with selected versions rated up to 500V DC and 125A or 250A for suitable PV and battery applications.

View the ZJ Beny PV DC MCCB

Solar Circuit Breaker Selection for PV and Batteries

A solar circuit breaker can appear at different parts of an energy system.

For example:

  • PV DC circuits
  • Inverter AC outputs
  • Battery DC circuits
  • Distribution boards
  • Combiner boxes
  • Commercial electrical panels

However, the same breaker should not automatically be used across all of these locations.

PV Array Protection

PV array protection needs to follow the array design and AS/NZS 5033 requirements.

The standard covers DC array wiring and electrical protection devices up to the PV array boundary.

Battery Protection

Battery systems can produce very high DC currents and have separate protection requirements.

Therefore, designers should use:

  • Battery manufacturer instructions
  • Inverter requirements
  • Applicable battery standards
  • Correct DC-rated protective devices

Do not size a battery breaker from battery capacity in kWh alone.

A 10kWh battery, for example, can have very different current characteristics depending on system voltage and inverter power.

Inverter AC Protection

The inverter’s AC output protection should follow:

  • Inverter rated output current
  • Cable size
  • Manufacturer instructions
  • Supply configuration
  • Applicable Australian standards

Again, there is no universal breaker size based only on inverter kW.

Common Solar Circuit Breaker Mistakes

Several mistakes in breaker selection can create nuisance tripping or, more seriously, insufficient protection.

Using an AC Breaker on an Unsupported DC Circuit

Always check the actual DC rating.

The fact that a breaker can carry 32A on AC does not automatically mean it can safely interrupt 32A at high DC voltage.

Choosing a Breaker Only by Amperage

Current rating is only one parameter.

Also check:

  • Voltage rating
  • Breaking capacity
  • Poles
  • Trip characteristics
  • Environmental limits
  • Product standard
  • Manufacturer requirements

Using Generic Cable-and-Breaker Tables

A simple table may ignore installation temperature, grouping and cable route.

Therefore, final breaker and cable coordination should use the project-specific electrical design.

Confusing Safety Switches With Circuit Breakers

A circuit breaker is not automatically a safety switch.

Queensland’s Electrical Safety Office specifically notes that breakers protect circuits while safety switches protect people from electric shock.

Assuming Bigger Is Safer

Installing a breaker with a larger current rating than required can reduce cable protection.

Therefore, “oversizing for safety” is not a valid design strategy.

Solar Circuit Breaker Options From Solar Rains

Solar Rains supplies circuit protection products for different AC and DC applications.

CHINT AC Miniature Circuit Breaker

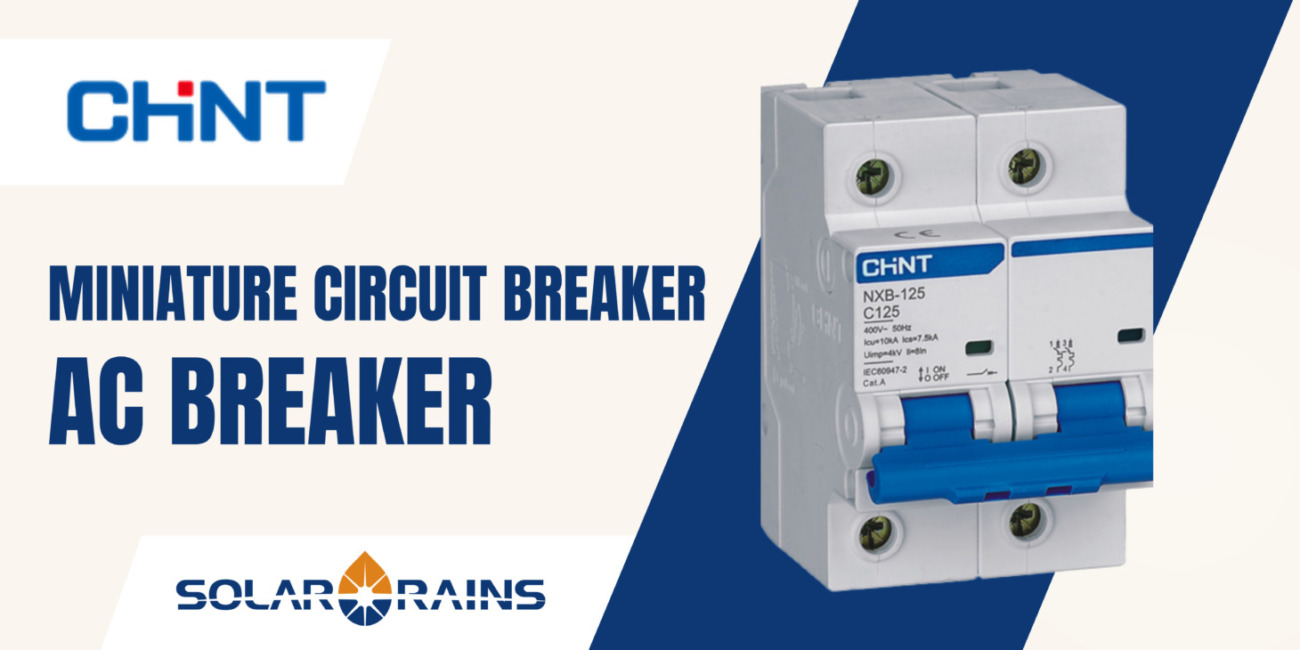

CHINT AC miniature circuit breaker shown in a safety guide for choosing circuit breakers

The CHINT NXB/NB1 range includes AC MCB options for suitable residential, commercial and solar AC applications.

Current Solar Rains listings include 1-pole and 3-pole models across selected 20A, 25A, 32A and 63A options.

View CHINT AC circuit breakers

ZJ Beny DC MCCB

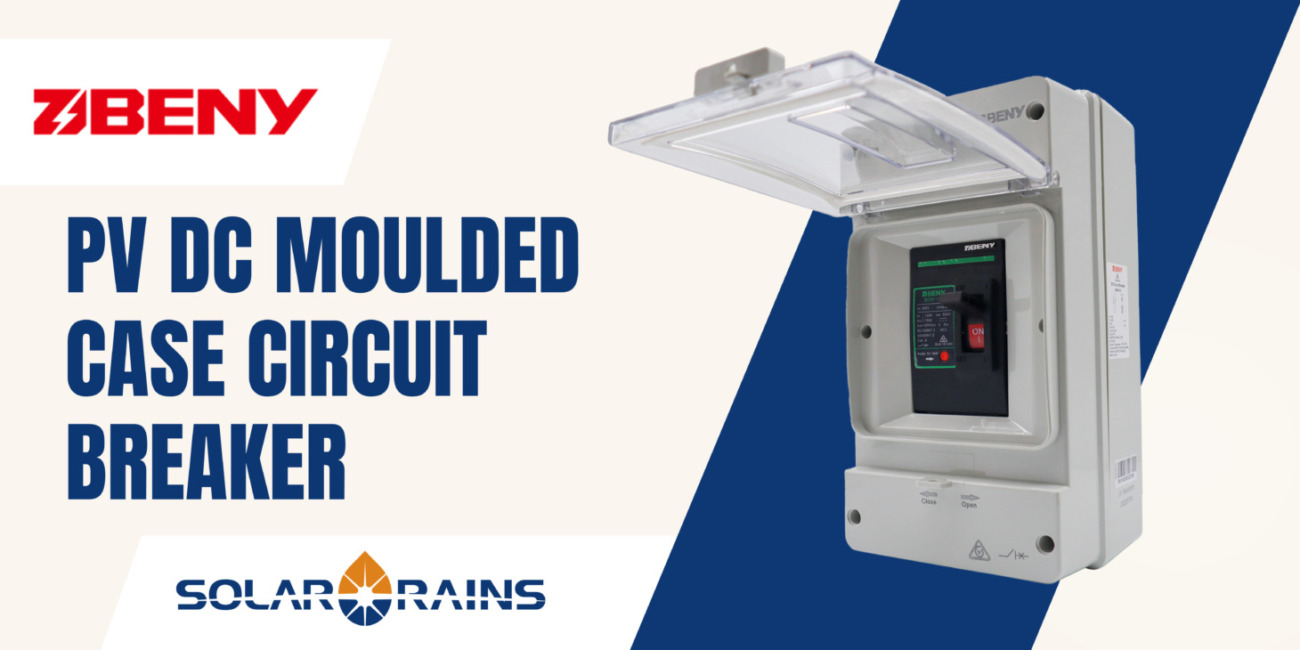

BENY PV DC moulded case circuit breaker shown in a safety guide for choosing circuit breakers

For higher-current DC applications, Solar Rains supplies the ZJ Beny BDM Series MCCB.

Selected models are available at 125A and 250A with ratings up to 500V DC.

View ZJ Beny DC MCCB options

For PV string protection, Solar Rains also supplies inline fuse products and compatible solar connectors.

Explore MC4 connectors and inline fuses

FAQs About Solar Circuit Breakers

How do I choose the correct solar circuit breaker size?

Start with the calculated circuit current, then coordinate the breaker with the cable current-carrying capacity.

After that, confirm voltage rating, breaking capacity, pole configuration and manufacturer requirements.

A licensed electrician or qualified designer should verify the final selection.

Can I use an AC breaker for solar DC?

Only if the manufacturer specifically rates the breaker for the required DC application.

Do not assume an AC breaker is suitable simply because its current rating matches.

What is the difference between an MCB and MCCB?

An MCB is generally a smaller fixed-rating protective device used in lower-current distribution applications.

An MCCB can cover higher currents, higher fault levels and more demanding applications.

However, the choice depends on electrical requirements rather than a fixed system-size threshold.

Is a circuit breaker the same as a safety switch?

No.

Circuit breakers primarily protect electrical circuits from excessive current, while safety switches protect against electric shock by detecting current leakage.

Does every solar system need a DC circuit breaker?

Not necessarily in the same location or form.

Required protection depends on the PV array design, inverter, battery architecture and applicable standards.

The system designer should determine the required protection and switching devices.

Final Takeaway

Choosing a solar circuit breaker requires more than selecting an amperage rating.

The device must suit the:

  • Circuit current
  • Cable capacity
  • AC or DC voltage
  • Prospective fault current
  • Pole requirements
  • Installation conditions
  • Equipment manufacturer instructions
  • Applicable Australian standards

Most importantly, avoid universal rules such as fixed breaker sizes based only on solar-system kW.

For professional solar installations, Solar Rains supplies AC MCBs, DC MCCBs, isolators, inline fuses and other circuit-protection components for residential and commercial projects.
