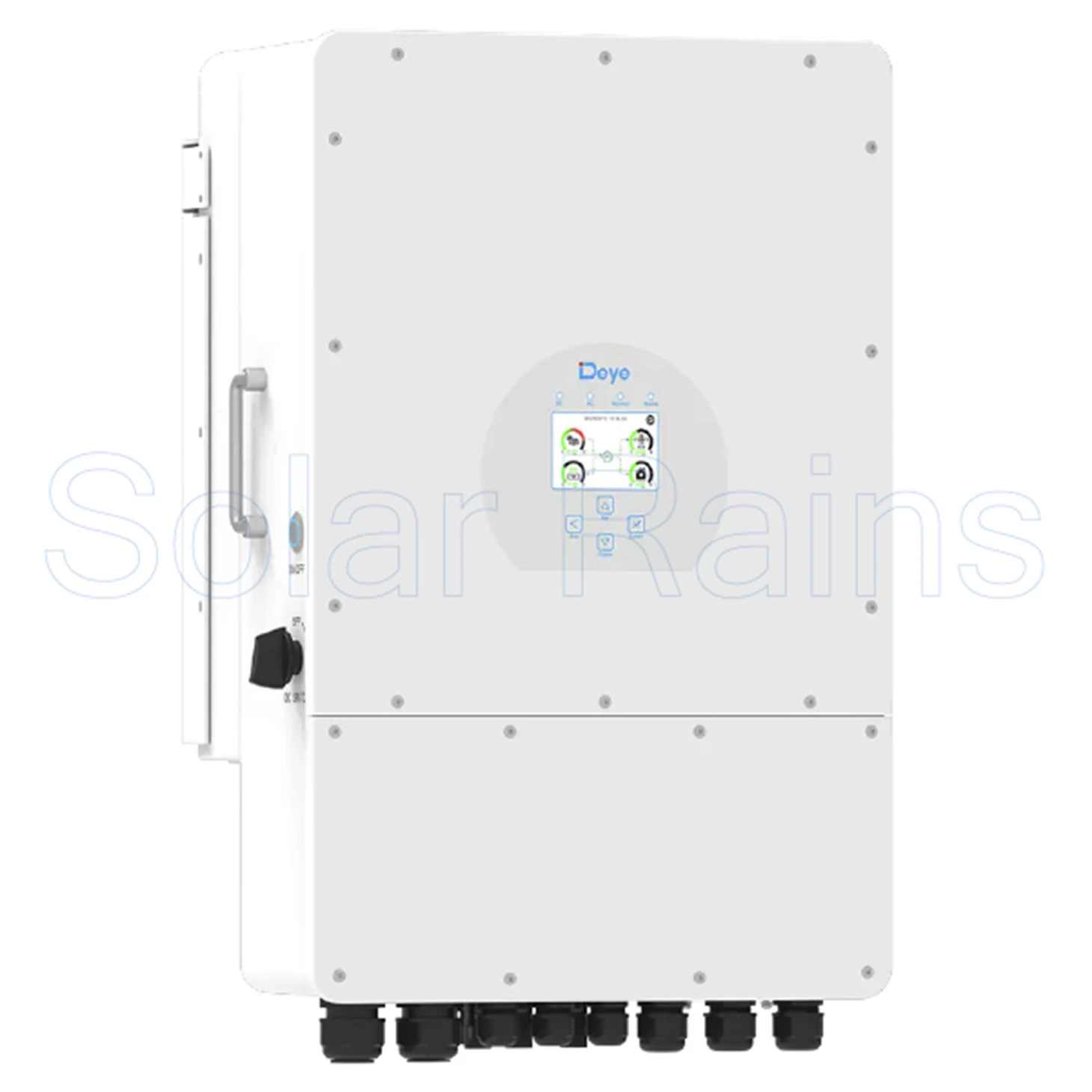

Deye Three Hybrid Inverter 5 kW, 8 kW, 10 kW or 12 kW
$3,824.08 – $4,299.36
Add the product to your cart and request a quote at checkout
Description
The Deye Three Hybrid Inverter (SUN-5/6/8/10/12K-SG04LP3-AU) is a three phase inverter designed to manage both on-grid and off-grid operations. With support for up to 10 units in parallel and compatibility with lithium or lead-acid batteries, this hybrid inverter delivers reliable and efficient performance for homes, businesses, and solar installers. Rated for up to 240A charging/discharging, it ensures seamless integration with energy storage systems and even supports diesel generator input.
With a wide MPPT voltage range, transformer isolation, and 48V battery compatibility, this deye inverter is ideal for high-demand solar setups that require flexibility, backup, and long-term efficiency.
Key Features of Deye Three Hybrid Inverter 5 kW, 8 kW, 10 kW or 12 kW
- Model Options: SUN-5K, SUN-6K, SUN-8K, SUN-10K, and SUN-12K – tailored to various system sizes.
- High charging/discharging current: Max. 240A ensures fast energy transfer.
- Battery voltage range: 40–60V compatible with 48V systems.
- MPPT range: Wide range from 200V to 650V; rated PV voltage at 550V.
- Max PV input: Up to 24,000W on the 12kW model, providing flexibility for larger arrays.
- AC output: 100% unbalanced three-phase output with peak output up to 50% per phase.
- Efficiency: Max. 97.6% inverter efficiency; 99.9% MPPT efficiency.
- Parallel support: Connect up to 10 inverters for large systems or scalability.
- On-grid/off-grid support: Allows retrofitting to existing grid-connected systems.
- Diesel generator support: Ideal for hybrid energy use in remote areas.
- Smart charging periods: Up to 6 time periods for battery charge/discharge.
- Cooling: Intelligent air cooling and IP65 protection for outdoor use.
- Certifications: AS/NZS 4777.2 grid compliance, IEC/EN 61000, and IEC/EN 62109 safety standards.
- Communication: RS485/CAN, GPRS/WIFI/4G/LAN monitoring options.
Main Benefits
The Deye Three Hybrid Inverter offers value to a wide range of users:
Solar Design Engineers
- Accurate system modelling with full technical specifications available.
- Transformer isolation ensures low noise & improved battery safety.
- Wide MPPT range simplifies PV string design and optimization.
EPC Contractors
- Quick deployment with pre-configured battery compatibility and scalable design.
- Flexible wiring options (3L+N+PE) and intelligent air cooling reduce installation overhead.
- Parallel mode for large-scale deployments – ideal for solar farms or industrial rooftops.
Distributors
- Strong market reputation for deye inverters ensures higher demand.
- Long-term support, 10-year warranty, and robust Australian standards compliance.
- Suitable for both residential and light-commercial markets, increasing sales potential.
Residential or Small Business Owners
- 48V battery system reduces complexity and enhances safety.
- Intelligent backup switching and seamless solar usage during outages.
- Monitor system performance via Wi-Fi, GPRS, or LAN in real time.
Installation Environment & Mounting Requirements
Before installing the Deye Three Hybrid Inverter, it’s essential to check the package contents for any damage and confirm that all listed components are present. As this hybrid inverter is a precision electrical device, careful handling and correct installation are critical to ensure safety and performance.
Safe Handling Guidelines
This three phase inverter is heavy and must be handled with care. Always lift using the built-in handles — never by the terminals — and use proper transport tools if necessary. Protective padding (like foam or sponge) should be placed under the unit when moving it to avoid damaging the metal casing. Installers should wear gloves and safety shoes.
Outdoor Installation Requirements
The Deye hybrid inverter is IP65-rated for outdoor use, but it must be mounted in a dry, shaded, and well-ventilated location to ensure longevity and efficiency. Avoid placing the inverter:
- In direct sunlight or exposed to rain or snow
- In areas with flammable or explosive materials
- Near TV antennas or cooling outlets
- In environments with humidity >95% or at altitudes above 2000m
Maintaining ambient temperature between -40°C and 60°C will support optimal performance.
Mounting Instructions
Select a vertical, non-flammable wall (such as concrete) that can support the inverter’s weight. Install the unit at eye level to allow easy reading of the LCD screen. Ensure sufficient spacing:
- 50 cm clearance on both sides and above/below
- 100 cm in front of the unit for wire access and ventilation
Mounting steps include drilling four holes (82–90mm deep), inserting expansion bolts, aligning the inverter bracket, and securing it tightly. Always disconnect power before wiring and remove the metal front cover when connecting cables.
By following these best practices, installers and solar professionals can ensure that the Deye inverters are safely deployed, delivering efficient hybrid solar operation in both residential and commercial environments.
Caveat: The product description and datasheet on this page may not be the most updated version. Please refer to the user manual coming with products if there are conflicts.
Deye
Deye is a globally recognized brand known for its innovative energy solutions. The deye hybrid inverter product line offers scalable, efficient, and cost-effective energy conversion for residential and commercial solar systems. With over a decade of R&D and presence in over 80 countries, Deye’s products—including three phase inverters—are certified under international standards, making them a trusted choice for installers and end users worldwide.
This model supports both solar input and battery storage, and can switch between grid, solar, and battery modes. That’s the core of a hybrid inverter — flexible, intelligent energy management for self-consumption and backup.
Yes. The inverter supports off-grid operation, including parallel configurations (up to 10 units) and even integration with diesel generators. This makes it ideal for rural, remote, or backup applications.
Each phase supports 100% unbalanced output, with a maximum output of 50% of the rated power per phase. This makes it a highly flexible three phase inverter for real-world applications.
Yes. It supports both lithium and lead-acid batteries, and can auto-adapt to BMS systems for lithium battery control. This increases its utility in custom battery bank configurations.
The inverter includes overvoltage, short circuit, thermal, surge, arc fault, and earth fault protection. It comes with a 10-year warranty when purchased through Solar Rains, giving peace of mind for long-term use.
Yes. The deye hybrid inverter supports GPRS, Wi-Fi, 4G, LAN, and RS485/CAN connections for remote system monitoring and updates via Deye’s platform.
| Download Area | |
|---|---|
| Datasheet SUN-5-6-8-10-12K-SG04LP3-AU | Download |
| Spare parts and monitor portal | Download |
| Deye SUN Series inverter 10-Year Limited Warranty | Download |
| Model | SUN-5K-SG04LP3-AU |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 120 |
| Max. Discharging Current (A) | 120 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV access power(W) | 10000 |
| Max. DC Input Power (W) | 7500 |
| Rated PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Rated DC Input Voltage(V) | 550 |
| Max. Operating PV Input Current (A) | 13+13 |
| Max. Input Short-Circuit Current (A) | 19.5+19.5 |
| No. of MPP Trackers/
No. of Strings MPP Tracker |
2/1+1 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 5000 |
| Max AC Output Active Power (W) | 5000 |
| AC Output Rated Current (A) | 7.2 |
| Max. AC Output Current (A) | 7.2 |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 230 /240 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz |
| Grid Connection Form | 3L+N+PE |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC Current Injection | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Overvoltage Category | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Inverter Topology（solar/batter） | Transformerless/ HF Transformer |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Noise (dB) | <55 dB |
| Weight (kg) | 38 |
| Cabinet size (mm) | 422W x 658H x254D（Excluding connectors and brackets） |
| Protection Degree | IP65 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 120 |
| Max. Discharging Current (A) | 120 |
| Model | SUN-8K-SG04LP3-AU |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 190 |
| Max. Discharging Current (A) | 190 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV access power(W) | 16000 |
| Max. DC Input Power (W) | 12000 |
| Rated PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Rated DC Input Voltage(V) | 550 |
| Max. Operating PV Input Current (A) | 13+13 |
| Max. Input Short-Circuit Current (A) | 19.5+19.5 |
| No. of MPP Trackers/
No. of Strings MPP Tracker |
2/1+1 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 8000 |
| Max AC Output Active Power (W) | 8000 |
| AC Output Rated Current (A) | 11.6 |
| Max. AC Output Current (A) | 11.6 |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 230 /240 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz |
| Grid Connection Form | 3L+N+PE |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC Current Injection | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Overvoltage Category | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Inverter Topology（solar/batter） | Transformerless/ HF Transformer |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Noise (dB) | <55 dB |
| Weight (kg) | 38 |
| Cabinet size (mm) | 422W x 658H x254D（Excluding connectors and brackets） |
| Protection Degree | IP65 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 190 |
| Max. Discharging Current (A) | 190 |
| Model | SUN-5K-SG04LP3-AU |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 120 |
| Max. Discharging Current (A) | 120 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV access power(W) | 10000 |
| Max. DC Input Power (W) | 7500 |
| Rated PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Rated DC Input Voltage(V) | 550 |
| Max. Operating PV Input Current (A) | 13+13 |
| Max. Input Short-Circuit Current (A) | 19.5+19.5 |
| No. of MPP Trackers/
No. of Strings MPP Tracker |
2/1+1 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 5000 |
| Max AC Output Active Power (W) | 5000 |
| AC Output Rated Current (A) | 7.2 |
| Max. AC Output Current (A) | 7.2 |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 230 /240 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz |
| Grid Connection Form | 3L+N+PE |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC Current Injection | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Overvoltage Category | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Inverter Topology（solar/batter） | Transformerless/ HF Transformer |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Noise (dB) | <55 dB |
| Weight (kg) | 38 |
| Cabinet size (mm) | 422W x 658H x254D（Excluding connectors and brackets） |
| Protection Degree | IP65 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 120 |
| Max. Discharging Current (A) | 120 |
| Model | SUN-12K-SG04LP3-AU |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 240 |
| Max. Discharging Current (A) | 240 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV access power(W) | 24000 |
| Max. DC Input Power (W) | 18000 |
| Rated PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Rated DC Input Voltage(V) | 550 |
| Max. Operating PV Input Current (A) | 26+13 |
| Max. Input Short-Circuit Current (A) | 39+19.5 |
| No. of MPP Trackers/
No. of Strings MPP Tracker |
2/2+1 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 12000 |
| Max AC Output Active Power (W) | 12000 |
| AC Output Rated Current (A) | 17.4 |
| Max. AC Output Current (A) | 17.4 |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 230 /240 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz |
| Grid Connection Form | 3L+N+PE |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC Current Injection | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Overvoltage Category | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Inverter Topology（solar/batter） | Transformerless/ HF Transformer |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Noise (dB) | <55 dB |
| Weight (kg) | 38 |
| Cabinet size (mm) | 422W x 658H x254D（Excluding connectors and brackets） |
| Protection Degree | IP65 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 240 |
| Max. Discharging Current (A) | 240 |
Simon Dobson –
Deye’s parallel capability is a game-changer for our large installs. SolarRains delivered all 10 inverters on time, and the 97.6% efficiency speaks for itsel
Gabriel Berber –
Everything good, simple setup, slashed my power bill by 60%. Solar Rains made it easy!
Dave R. –
This inverter is a beast! Runs my water pumps and freezers without a hitch. Solar Rains gave honest delivery estimates. Minor Wi-Fi glitch, but the generator hybrid mode saved me during storms. Worth every dollar
