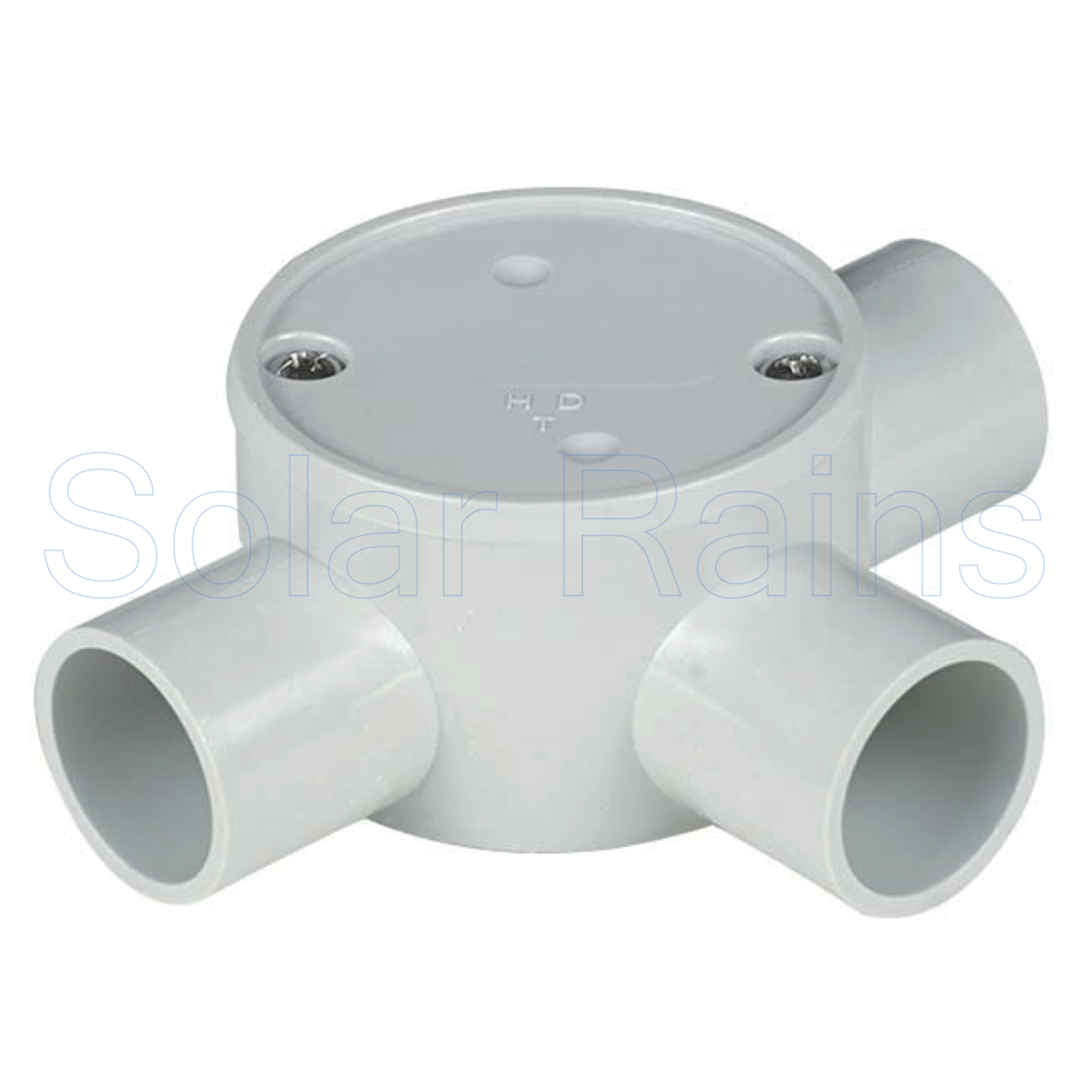

25mm Shallow Box 3 Way

The 25mm Shallow Box 3 Way is a specialized conduit fitting designed for routing conduit in three different directions within confined or shallow spaces. Constructed with durability and user-friendly installation in mind, this product is part of our robust line of conduit accessories tailored for residential, commercial, and solar electrical systems. Its 3-way junction design simplifies complex conduit networks while maintaining safety and integrity.

This fitting is commonly used in installations where multiple conduit lines need to diverge from a single junction point, helping reduce clutter and streamline cable management.

Key Features of 25mm Shallow Box 3 Way

Based on the technical data from our catalogue, the 25mm Shallow Box 3 Way offers:

• Universal 25mm Sizing: Compatible with most standard 25mm conduits in Australia.
• Durable Construction: Manufactured with heavy-duty, industrial-grade material for long-lasting performance in demanding environments.
• Compact Box Dimensions: Each box measures approximately 26.3 x 15.6 cm, ideal for installations where space is limited.
• Standardised Carton Size: Efficient packing with 200 pcs per carton (10 pcs/inner box × 20 boxes), optimised for logistics.
• Lightweight Design: Simplifies handling during installation while still maintaining a sturdy form factor.
• Low Profile for Shallow Installs: Perfect for flush-mount wall applications or ceiling systems that require low clearance fittings.

Main Benefits

The 25mm Shallow Box 3 Way delivers practical advantages to a wide range of users:

For Solar System Designers

• Optimized Cable Management: Enables cleaner layouts for rooftop and wall-mounted solar inverter systems.
• Reliable Connection: Maintains structural integrity under long-term sun exposure and varying temperatures.

For EPC Contractors & Installers

• Fast & Simple Installation: Designed for quick assembly, reducing overall project time.
• Versatile Fitting Solution: Reduces the number of fittings needed by integrating three routes in one box.

For Electrical Distributors

• Efficient Stock Handling: High carton density (200 pcs/carton) reduces warehouse space and simplifies stock control.
• Uniform Size for Display & Sales: Standard packaging with clear product identification.

For DIY or Home Electrical Users

• Easy to Use: Simple plug-in mechanism suitable for standard 25mm conduits.
• Safe & Neat: Improves appearance and safety of home conduit installations with minimal skill required.

For OEM & Panel Builders

• Standardised Part for Repetitive Builds: Ensures consistency across custom enclosures and cabinets.
• Simplifies Routing: Reduces the need for multiple junction boxes in tight spaces.

How to Use the 25mm Shallow Box 3 Way

The 25mm Shallow Box 3 Way is designed for tight-space electrical installations, commonly used in residential or commercial settings where wall depth is limited.

Step-by-Step Installation Guide:

1. Determine your installation requirement: Use a shallow box when standard-depth boxes cannot be accommodated such as in retrofits, thin wall cavities, or panel enclosures.
2. Select the correct box type: Ensure the 25mm 3-way shallow box suits your conduit size (25mm) and fits the intended switch configuration.
3. Route the wiring: Run the required cables (active, neutral, earth, and switching wires) through the 3 conduit entry points to meet your circuit’s switching requirements.
4. Mount the box: Securely fix the shallow box to a surface or framework using appropriate mounting screws or brackets. Make sure the front edge sits flush with the wall surface.
5. Connect switches or devices: Terminate the wires inside the box as per standard wiring regulations. This may involve installing 3-way switches, lighting controls, or junction terminals.
6. Finalise the installation: Tuck the wires neatly to avoid congestion. Attach the switch mechanism or blanking plate. Secure all components in place and check for mechanical stability.

Ideal for space-restricted switch or junction points, the Solar Rains 25mm Shallow Box 3 Way ensures safe, compliant, and space-efficient cable terminations in modern and retrofit installations.

Caveat: The product description and datasheet on this page may not be the most updated version. Please refer to the user manual coming with products if there are conflicts.

Foshan Solid Electrical Co. Ltd

The 25mm Shallow Box 3 Way is manufactured by Foshan Solid Electrical Co. Ltd, a trusted name in the electrical conduit fittings industry. With over 20 years of manufacturing experience, Solid Electrical is known for its precision engineering, quality certifications, and adherence to international standards. Their products are widely used across commercial, industrial, and residential sectors, offering consistency and confidence for professionals worldwide.
