Dektite Premium Solar Black/ Magenta Base Roof Flashing

The Dektite Premium Solar Black/ Magenta Base Roof Flashing is a robust and versatile roof flashing solution designed to deliver superior performance in solar panel installations. With its low-profile base and innovative cone structure, this Dektite product ensures reliable sealing for rooftop pipe penetrations in both residential and commercial environments. Its compatibility with a wide pipe size range (0–35mm), combined with high-grade silicon or aluminium construction, makes it a preferred option for solar professionals and builders.

Key Features of Dektite Premium Solar Black/ Magenta Base Roof Flashing

• Low-profile base with watershed sleeve: Prevents water accumulation and leakage, ensuring extended durability in harsh weather.
• Larger square base: Improves stability and sealing across steep roof pitches.
• Unique cone design: Facilitates easy cutting to fit pipe diameters accurately, supporting custom installation needs.
• Clear imperial & metric notations: Provides easy-to-follow measurements for efficient on-site installation.
• Material: Manufactured from premium silicon or aluminium, offering excellent resistance to UV, ozone, and temperature variations.
• Size: 100mm x 100mm x 50mm base dimensions, compatible with 0–35mm pipe sizes.

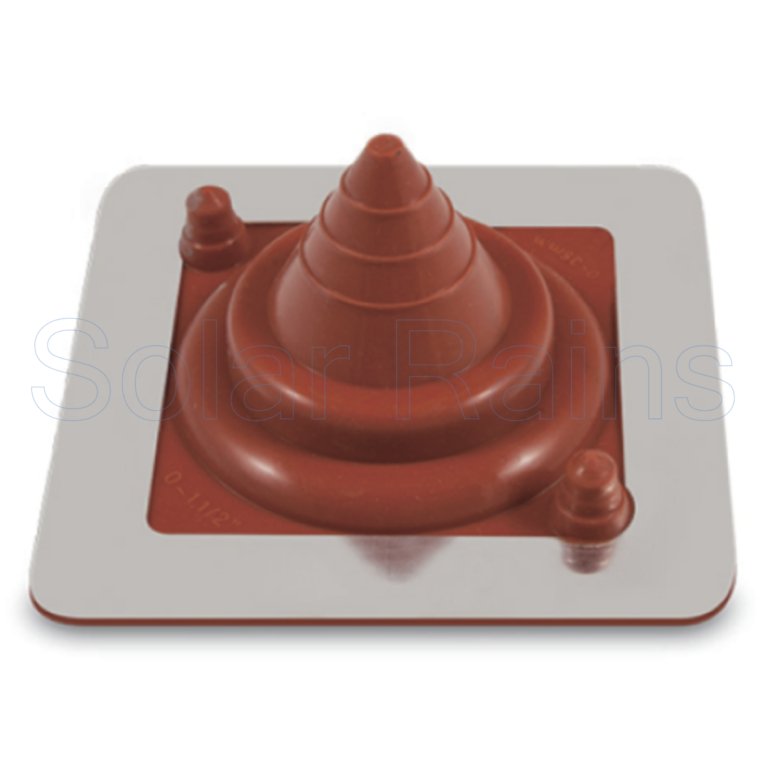

• Multiple color options available: Including the popular Solar Black and Magenta for aesthetic alignment with rooftop equipment.
• 20-year product warranty: Confidence in long-term performance & material quality.
• Efficient packaging: 500 pieces per carton, carton dimensions: 45.5 x 45.5 x 25cm, 18.8 kg per carton.

Main Benefits

The Dektite Premium Solar Roof Flashing offers tangible benefits tailored to a range of professional users and installers:

For Solar PV System Designers

• Enables seamless integration into solar infrastructure on rooftops.
• High flexibility in pipe compatibility (up to 35mm) supports diverse layout planning.

For EPC Contractors & Builders

• Simplified installation process thanks to clearly marked measurements.
• Strong UV resistance ensures reliable long-term sealing, even under constant sun exposure.
• Compatible with steep or unconventional roof pitches due to its flexible cone and wide base.

For Distributors & Wholesalers

• Efficiently packed in bulk with minimal weight per carton, facilitating storage & shipping.
• High market demand due to 20-year warranty and premium material construction.
• Trusted quality that supports client satisfaction and repeat sales.

For Domestic End-Users & DIY Installers

• Simple, intuitive design makes it suitable even for small-scale home solar installations.
• Weatherproof and reliable sealing with no need for complicated tools.
• Available in multiple color selections to match roofing or panel designs.

How to Install Dektite Premium Solar Roof Flashing

The Dektite Premium Solar Roof Flashing is engineered for a long-lasting, watertight seal around solar cable penetrations or pipes on metal and tile roofs. Follow these best practices to ensure a secure, weatherproof installation.

Step 1: Surface Preparation

• Ensure the roof area is clean, dry, and free of dust or debris before installation.
• Select the correct pipe size and carefully trim the Dektite cone to fit snugly around the pipe using sharp tin snips.
• Lightly lubricate the pipe with water to allow the flashing to slide down smoothly.

Step 2: Positioning the Flashing

• Slide the Dektite cone down the pipe until the base sits flush against the roofing surface.
• Gently mould the flexible base to match the roof profile—whether it’s corrugated metal, ribbed, or flat.
• Using a pencil or chalk, trace the base outline on the roof surface.

Step 3: Sealing the Base

• Lift the flashing and apply a generous bead of compatible roofing sealant within the marked area.
• Reposition the flashing and press firmly into the sealant to create a full-contact seal.
• Ensure the cone hugs the pipe tightly to prevent water ingress.

Step 4: Mechanical Fixing

• Secure the flashing with self-sealing fasteners or pop rivets, starting from the centre of each side and working outward for even pressure.
• Avoid over tightening to prevent distortion of the base or sealant squeeze-out.
• For added protection, apply a bead of sealant along the top edge of the flashing and around each fastener head.
• Optional: Use flashing tape around the base perimeter for high-exposure areas or additional sealing confidence.

Step 5: Final Check

• Inspect the entire installation to confirm that all points are sealed, seated, and mechanically secure.
• Trim any excess material if needed and ensure there are no gaps or exposed edges.
• The system is now ready for long-term protection in both residential and commercial solar roof applications.

Solar Rains recommends the Dektite Premium Flashing for installers who demand performance, flexibility, and reliable sealing in Australia’s harsh rooftop environments. Designed to accommodate thermal expansion and resist UV degradation, this flashing delivers peace of mind and professional-grade weatherproofing.

Caveat: The product description and datasheet on this page may not be the most updated version. Please refer to the user manual coming with products if there are conflicts.
