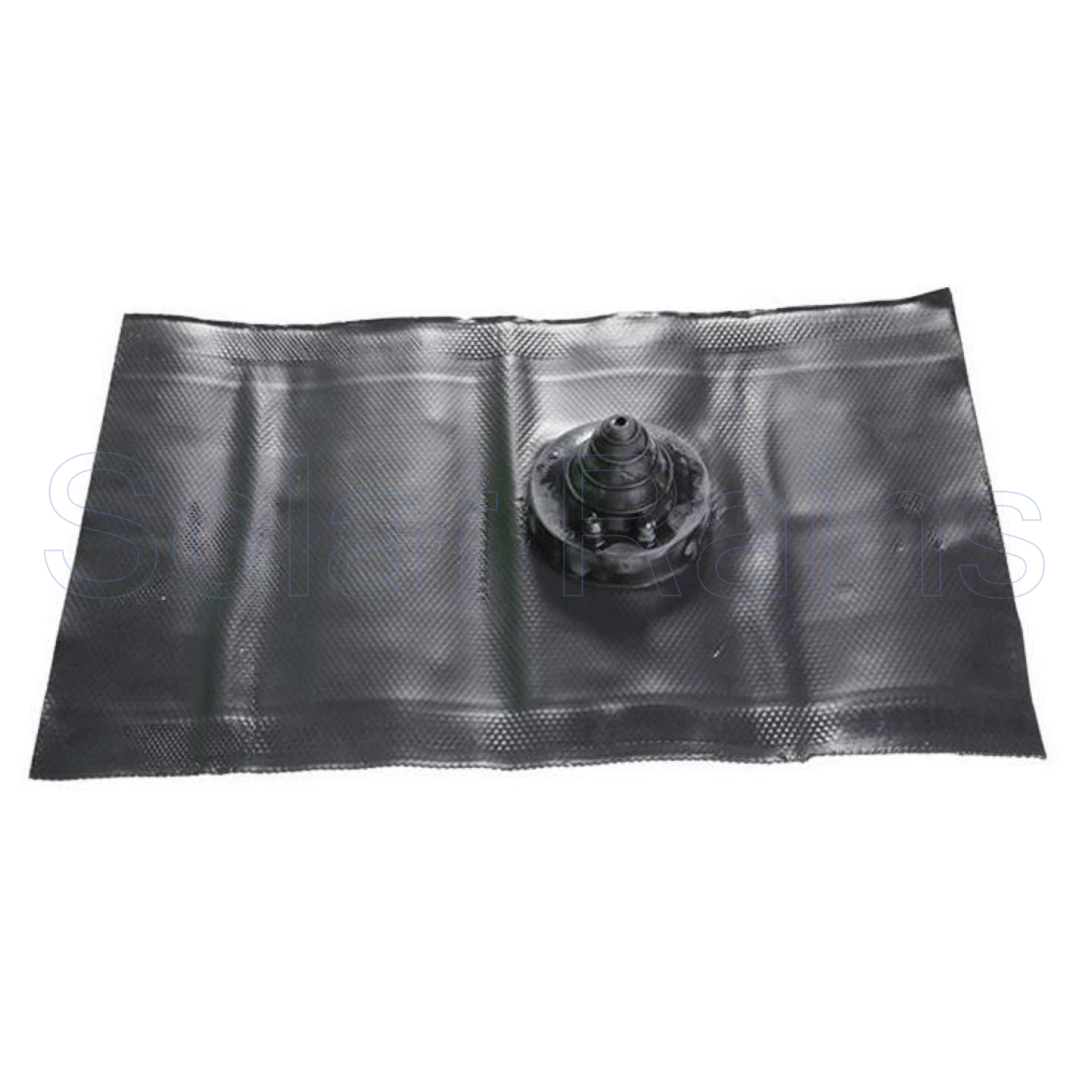

Square Base Dektite

The Square Base Dektite (NEB DT-50) from Solar Rains is an advanced, high-performing roof flashing solution. Manufactured from environmentally friendly rubbers containing isobutylene EPDM, combined with an inner soft aluminium expandable mesh and a self-adhesive butyl layer, this Dektite provides superior sealing capabilities and unmatched durability.

Designed for easy application, the product ensures effective waterproofing and robust UV resistance, making it suitable for diverse roofing needs including sealing chimneys, roof penetrations, brickwork, conservatories, dormers, rooflights, and solar panel installations. Its non-bituminous composition guarantees safety and reliability without compromising flexibility or ease of use.

Key Features of Square Base Dektite

• Material Composition: Made of EPDM combined with an aluminium expandable mesh and self-adhesive butyl layer.
• Lead-Free: Environmentally friendly solution, ensuring safe handling and sustainable use.
• Superior Flexibility & Stretchability: Capable of stretching up to 50% in length and 15% in width, ideal for adapting to various surfaces.
• Strong UV Resistance: Ensures longevity even under prolonged exposure to sunlight.
• Non-Bituminous Flashing Tape: Provides robust waterproof sealing without the use of bitumen, ensuring safe and clean handling.
• Outstanding Tensile Strength: Greater than 2Mpa, ensuring resistance to tearing under various environmental conditions.
• Temperature Resistance: Performs reliably in extreme temperatures from -40°C to +100°C.
• Color Options: Available in Black (RAL9011), Grey (RAL7043), and Red (RAL8004) for aesthetic versatility.
• Optimal Dimensions: Suitable for pipes sized between 6.35mm and 50.8mm, with a generous base size of 450mm x 280mm.
• Extended Shelf-Life: 12 months storage life when kept in original packaging under dry and cool conditions.
• Durability & Reliability: Offers a long lifespan of up to 20 years, making it a cost-effective, long-term solution.

Main Benefits

The Square Base Dektite provides targeted advantages tailored to a range of users:

For Roofing Contractors & Installers

• Easy installation process, significantly reducing labour and installation time.
• Provides a reliable, waterproof seal around challenging roof penetrations, saving on callbacks and maintenance costs.

For Solar Energy Installations

• Ideal for sealing around rooftop solar installations, offering robust UV resistance and weatherproofing to protect solar components.
• Ensures long-term reliability and reduced maintenance due to high-quality, durable materials.

For Distributors & Retailers

• Compact and standardized packaging facilitates effective inventory management and logistics.
• High-quality product with a strong reputation, improving customer satisfaction and repeat business.

For Homeowners & DIY Enthusiasts

• User-friendly design makes it suitable for DIY applications, offering straightforward installation without requiring specialized tools.
• A cost-effective solution that enhances the home’s protection against weather and environmental elements.

How to Install Square Base Dektite Roof Flashing

The Square Base Dektite is engineered for sealing pipe or conduit penetrations through tile or metal roofing with a flat-profile base. When properly installed, it provides a flexible, watertight seal that adapts to various roof surfaces, helping to prevent moisture ingress and maintain system integrity over time.

1. Surface Preparation: Ensure the roof area around the penetration point is clean, dry, and free of debris or oils. This allows for strong adhesion and proper conformance to the surface profile.
2. Lubricate the Pipe: Apply water or a mild lubricant to the outer surface of the pipe or conduit. This eases the installation process and helps avoid stress on the rubber cone during fitting.
3. Position the Flashing: Slide the square base Dektite down over the pipe until the flexible rubber cone sits snugly around it. Align the square base to fit flat onto the roof tiles or metal surface, making sure there are no air gaps or lifting edges.
4. Cut the Cone (If Required): If the pipe diameter is smaller than the default cone size, carefully trim along the pre-marked grooves using a sharp blade or scissors. Ensure a tight fit around the pipe to maintain a weatherproof seal.
5. Form Water Barrier: To prevent water tracking, create an anti-capillary fold at the top edge of the square base. This helps divert rainwater away from the flashing base area.
6. Apply Adhesive: Peel off the protective liner from the butyl adhesive strips located on the underside of the square base. Immediately press the flashing down onto the roof, applying firm, even pressure across the entire base.
7. Secure in Place: Where additional reinforcement is needed, especially in high wind or water exposure areas, use approved roofing fasteners at each corner or along the edges of the base. Seal over fastener heads with compatible silicone if required.
8. Optional Finishing: The rubber cone and base can be painted with 100% acrylic exterior paint to match your roofing color and blend with the aesthetic of the installation.

Use Square Base Dektite when working with flat-profile tiles or large penetrations that require greater surface contact. This ensures dependable waterproofing performance even in irregular or uneven roof conditions.

Caveat: The product description and datasheet on this page may not be the most updated version. Please refer to the user manual coming with products if there are conflicts.
